Warehouse columns are fixed; forklifts, pallet jacks, carts, and loads are not. In a busy aisle or staging area, even a low-speed contact can damage a protector, the vehicle, stored goods, or the column itself. A column protector adds a physical buffer around an exposed support, but its value depends on fit, placement, visibility, and inspection—not simply installing the largest guard that will fit.
Start with the traffic pattern, not the product catalog
Before selecting a protector, observe how material actually moves through the area. Note aisle widths, turning points, rack ends, dock approaches, pedestrian routes, blind corners, staging habits, and the parts of each column that show scrapes or prior contact. A column at the end of a narrow aisle has a different exposure from one behind a fixed barrier.
This survey also reveals whether the main problem is a vulnerable column or a traffic-layout issue. Column protection should support—not replace—clear routes, speed control, operator training, housekeeping, lighting, visibility aids, and appropriate separation between people and powered equipment.
What a column protector is designed to do
A wraparound protector places a replaceable material layer between moving equipment and the column. Its shape can spread local contact over a larger area and create a visible boundary around the support. This can be useful in warehouses, distribution centers, manufacturing plants, maintenance facilities, cold-storage operations, parking structures, and retail backrooms.
No protector makes a structural column impact-proof. Performance depends on the impact direction and energy, the column geometry, the fit of the guard, nearby obstructions, and the condition of both protector and structure. After meaningful contact, inspect the protector promptly and have suspected structural damage evaluated by an appropriately qualified person.
Six factors to check before choosing a protector
- Column dimensions and shape: Measure every side of square or rectangular columns at the installation height. Include base plates, flanges, wraps, conduit, fireproofing, and surface irregularities.
- Internal fit: Compare the protector's channel dimensions with the actual column. Too little clearance may prevent installation; excessive clearance may allow unwanted movement or poor positioning.
- External clearance: Confirm that the guard will not narrow an aisle, interfere with pallets, block doors or equipment, or create an unexpected pedestrian obstruction.
- Protection height: Review previous contact marks and the geometry of vehicle bodies, forks, attachments, and loads. A 20-inch guard may address common low-level contact, but every site should verify its own exposure zone.
- Material behavior: Resilient polyethylene can flex and recover from minor contact while resisting water and routine cleaning. Ask whether the product has a documented impact rating if a project specification requires one.
- Installation and maintenance: Confirm how the halves join, whether the floor or column requires modification, and how the unit can be removed for cleaning and inspection.
Understanding the OranLite size options

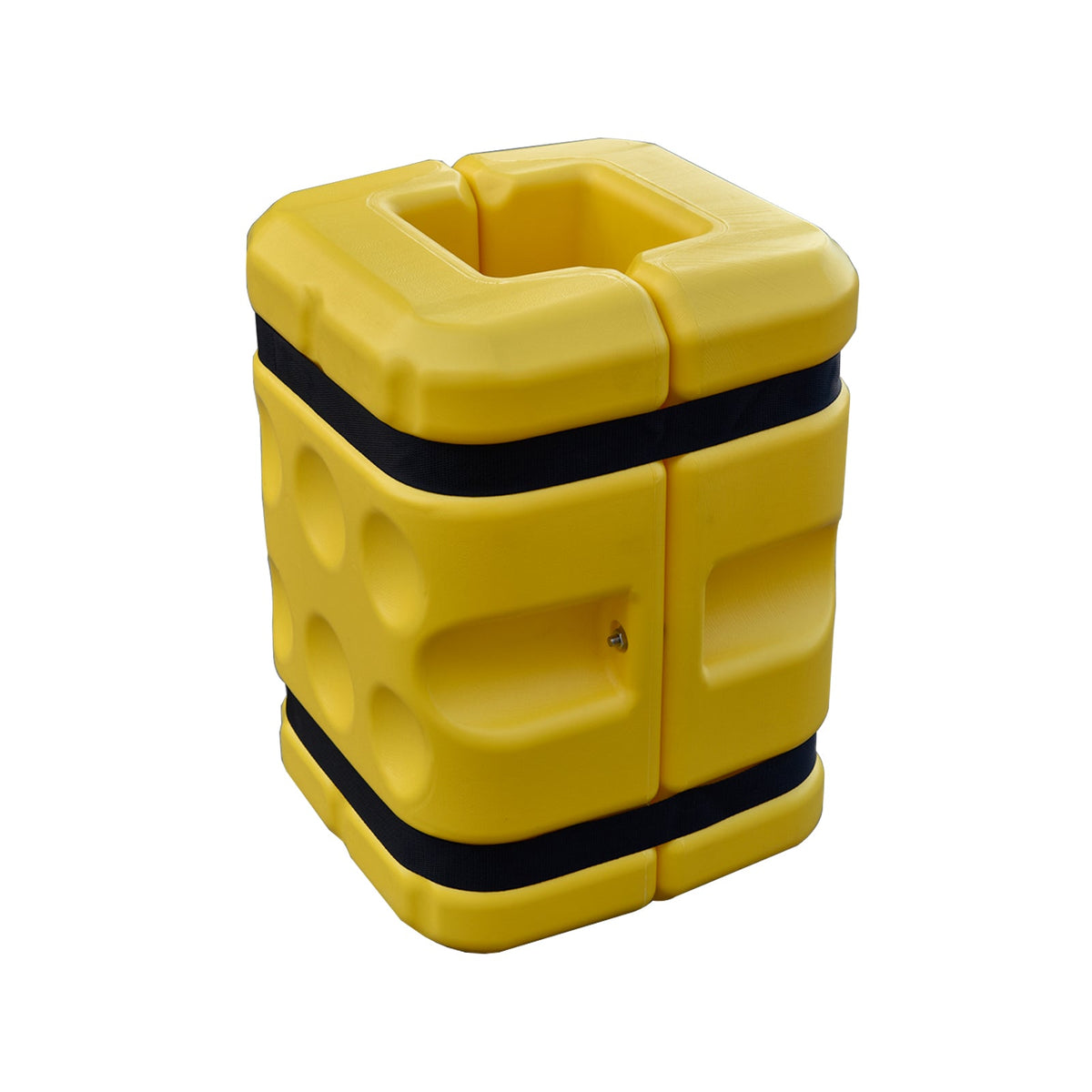

The OranLite Column Protector is made from high-resilience low-density polyethylene (LDPE) and is intended for square or rectangular warehouse columns. The product page lists two 20-inch-high options:
- 6-inch option: 14-inch outside diameter, approximately 6 by 6 1/2-inch internal channel, and a listed weight of 13 lb.
- 8-inch option: 16-inch outside diameter, approximately 8 1/2-inch internal channel, and a listed weight of 14 lb.
The option name is only a starting point. Use the product drawing and the actual column measurements to confirm fit. If a column has an unusual profile, thick fireproofing, attached utilities, or a large base plate, verify compatibility before ordering. Do not cut, compress, or modify a protector unless the manufacturer specifically permits it.
Placement, visibility, and housekeeping
Install each protector so it remains centered and does not rock, twist, or create a raised edge. Keep the surrounding floor free from shrink wrap, broken pallets, loose straps, and other debris that can hide the base or change vehicle travel. The yellow surface improves visibility, but it should be supported by adequate lighting and a clear line of sight.
Where repeated contact occurs, treat the marks as operational information. The correct response may include changing a staging location, widening a turn, moving inventory, adding a mirror, revising a route, or using a different protective system. Replacing damaged guards without addressing the contact pattern can leave the underlying cause unchanged.
Create a simple inspection routine
Include column protectors in regular facility inspections. Check that each unit remains aligned and securely assembled. Look for cracks, splits, severe deformation, missing components, chemical damage, or wear that exposes the column. Clean the surface so damage and visibility are easy to assess.
Following any reported impact, inspect both the guard and the protected support. Remove a damaged protector from service according to the site's procedure, document the location and event, and investigate recurring contacts. Inspection records can help facility teams decide whether the protector, traffic plan, or both need to change.
Match protection to the real warehouse
Good column protection starts with accurate measurements and an honest view of vehicle movement. Survey the site, select the internal fit and external profile carefully, confirm aisle clearance, and make inspection responsibility clear. The result is a protection program that is easier for operators and maintenance teams to understand and sustain.
Review the OranLite 6/8-Inch Column Protector for current options, dimensions, drawings, product images, and availability. For multiple column sizes or high-traffic layouts, organize measurements by location before contacting OranLite so the right configuration can be discussed efficiently.
