Every dock has a contact zone. At a marina, that zone may be where a boat drifts toward a fixed edge as wind or current changes. At a loading area, it may be where a vehicle approaches a wall or dock face at low speed. Rubber dock bumpers add a resilient layer between the moving object and the structure, but a useful installation begins with the actual approach path, contact height, and mounting surface—not simply the overall length of the bumper.
What a dock bumper can—and cannot—do
A dock bumper is intended to cushion routine contact and reduce direct abrasion or impact against an exposed edge. Depending on the site, it may help protect a dock face, wall, trailer body, vehicle bumper, or vessel hull from minor operational contact. Rubber is well suited to this role because it can compress under load and recover after contact while tolerating outdoor exposure.
A bumper is not a substitute for controlled approach speeds, competent operators, mooring equipment, wheel restraints, guides, structural maintenance, or site-specific traffic procedures. It also does not make a weakened dock face safe. If the mounting surface is cracked, corroded, loose, or otherwise questionable, repair or evaluate the structure before installing new bumpers.
Where rubber dock bumpers are commonly useful
- Marinas and private docks: along fixed edges, posts, and other likely vessel-contact points.
- Loading and service areas: on suitable dock faces or walls where vehicles make controlled, low-speed approaches.
- Warehouses and distribution centers: at selected bays, staging edges, or service locations with repeat contact.
- Manufacturing and maintenance facilities: around durable structures exposed to carts, trailers, or mobile equipment.
- Fleet and rental yards: at recurring parking or positioning points where a replaceable buffer is useful.
Seven questions to answer before choosing a profile
- What makes contact? Record the vessel, vehicle, trailer, cart, or equipment type and identify the surface that is most likely to touch the dock.
- Where is the contact height? Account for loaded and unloaded vehicle height, vessel freeboard, tide or water-level change, suspension movement, and dock movement where applicable.
- Is contact continuous or localized? A long D-shaped section can protect an extended edge, while a deeper square block may suit a more concentrated contact point.
- How much projection is needed? The bumper must stand proud of nearby hardware, corners, and other surfaces that could otherwise make first contact.
- What supports the fasteners? Concrete, steel, timber, and composite structures require different attachment decisions. Confirm the substrate, backing, edge distance, and appropriate hardware.
- What is the environment? Sun, rain, saltwater, temperature changes, dirt, oil, and repeated wet-dry cycles affect maintenance and inspection frequency.
- How severe is the expected contact? Product dimensions and material alone do not establish an impact rating. If the project has a specified energy or force requirement, request documented performance data before selection.
D-shaped versus square bumpers
A D-shaped bumper presents a rounded contact face over a relatively long section. This can help create a continuous buffer along a dock edge and reduce abrupt snag points. A square block provides a broader, deeper rectangular profile for a more localized area. Neither shape is automatically better; the correct choice depends on the structure, approach direction, required projection, and spacing.

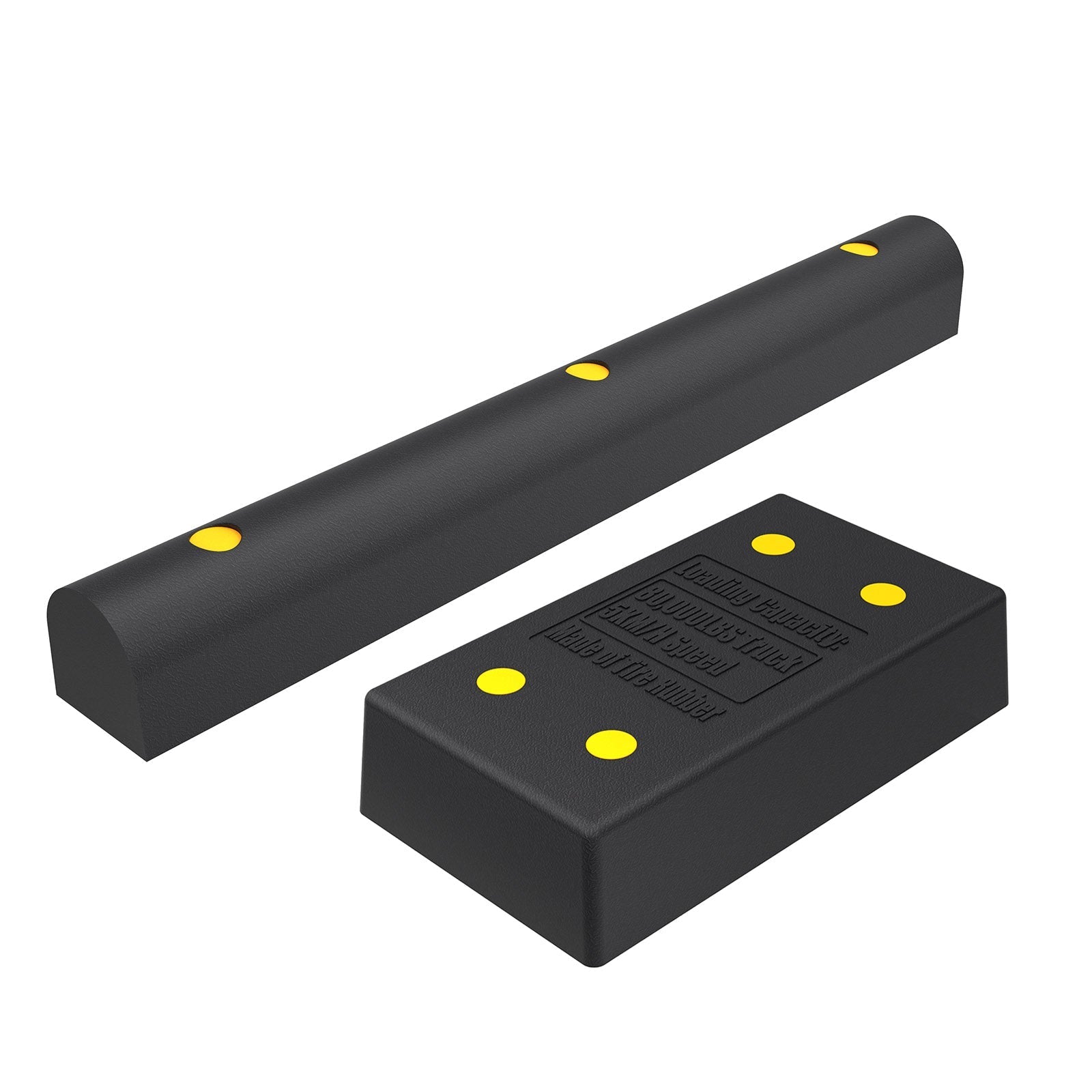

The OranLite Dock Bumper is made from high-density resilient rubber and includes pre-drilled mounting holes. The current product page lists two options:
- D-shape: 35 7/16 inches long, 4 inches wide, 4 inches high, and a listed weight of 22 lb.
- Square: 17 11/16 inches long, approximately 9 13/15 inches wide, 4 inches high, and a listed weight of 32 lb.
Use the product drawings rather than the option name alone. Verify the hole pattern, edge clearance, bumper projection, and available mounting area against the actual dock. Where several bumpers will form a run, plan the spacing so that normal contact does not occur between protected sections.
Installation starts with the structure
Mark the intended contact zone and confirm that the substrate can carry the loads transferred through the fasteners. Select mounting hardware suited to the structure and environment, following the product instructions and any applicable project requirements. Fastener heads and exposed edges should not become the first point of contact with a vessel or vehicle.
Keep bumpers aligned, avoid unnecessary gaps at high-contact locations, and do not mount over damaged material. At marine sites, consider water-level variation and how boats of different sizes sit against the dock. At loading sites, compare both empty and loaded vehicle positions. A layout that works for one vehicle or vessel may not protect the next one.
Inspection and replacement
Inspect dock bumpers on a schedule appropriate to traffic and exposure, and again after unusual contact. Look for loose or missing fasteners, pull-out around mounting holes, deep cuts, chunking, permanent deformation, cracking, or a bumper that no longer projects beyond the surface it is meant to protect. Marine installations also deserve checks for corrosion and deterioration in the supporting structure.
Clean away dirt and deposits that hide damage. Replace a bumper when it can no longer remain securely mounted or provide the intended contact surface. Recurring damage in the same location is a reason to revisit approach control, spacing, profile, or structural support rather than repeatedly replacing the same part.
Build a practical dock protection plan
Measure the structure, observe real approach paths, identify the contact height range, and document the environment before ordering. For multi-bay or marina projects, group locations by contact pattern instead of assuming every edge needs the same bumper.
Review the OranLite Dock Bumper for current D-shaped and square options, detailed drawings, images, and availability. If your project includes several dock types or changing contact heights, organize the site measurements first, then contact OranLite to discuss a practical configuration.
