Steel U-Channel Sign Post & Ground Base Options | 1 & 2 Packs
Descripción
Descripción
Build a clear, consistent sign installation with the OranLite steel U-channel sign post and matching ground base options. The green post features a row of mounting holes for positioning parking, directional and property signs. Choose the part and pack quantity that suit your installation.
Choose Your Part and Pack Quantity
Post and Ground Base are separate purchase options. Select a Part first, then choose 1PACK or 2PACK. The combined product photo illustrates the components; it does not mean every component is included with every option.
| Part | QTY | Selected item | SKU |
|---|---|---|---|
| Post | 1PACK | 1 U-channel sign post | DH-UPOST-1 |

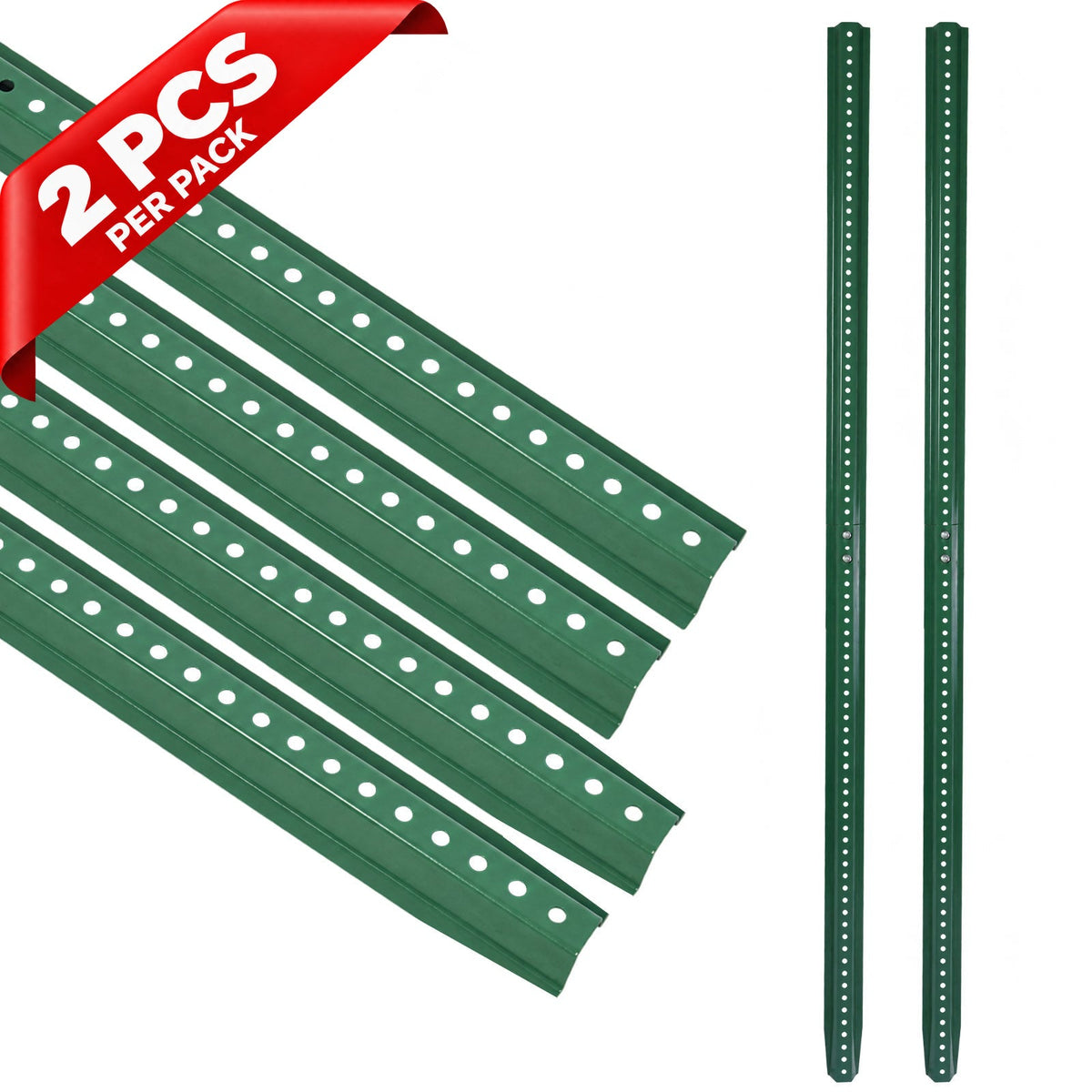

| Post | 2PACK | 2 U-channel sign posts | DH-UPOST-1x2 |
| Ground Base | 1PACK | 1 ground base | DH-UPOST-Base-1 |

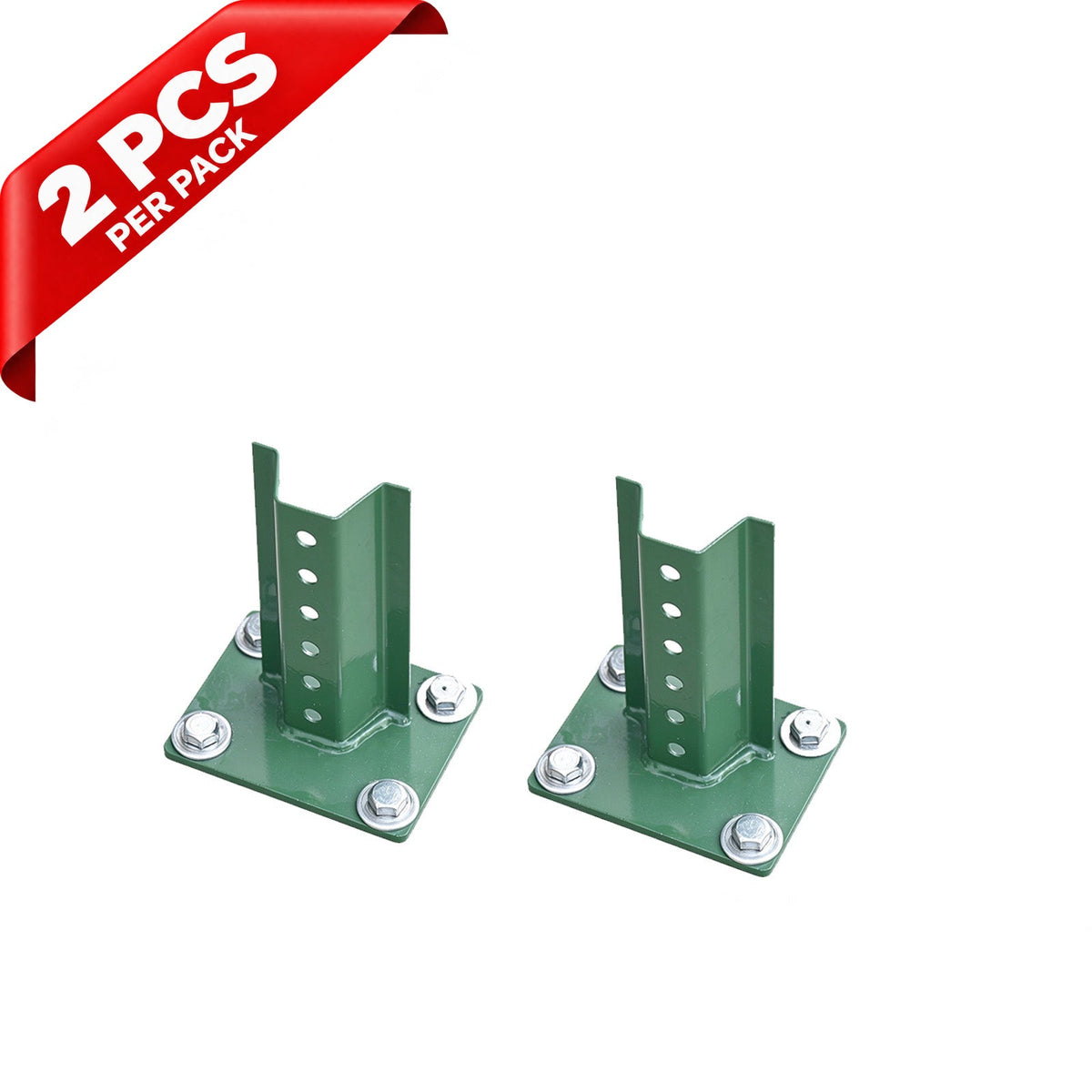

| Ground Base | 2PACK | 2 ground bases | DH-UPOST-Base-1x2 |
Features for Sign Installation
- U-channel profile: a formed steel section with a green finish.
- Multiple mounting positions: the post's pre-punched holes provide a choice of sign positions. Check your sign's hole spacing before ordering.
- Separate ground base option: a welded U-channel support on a rectangular plate with four mounting holes.
- Choice of quantities: order one or two posts or bases for your project.

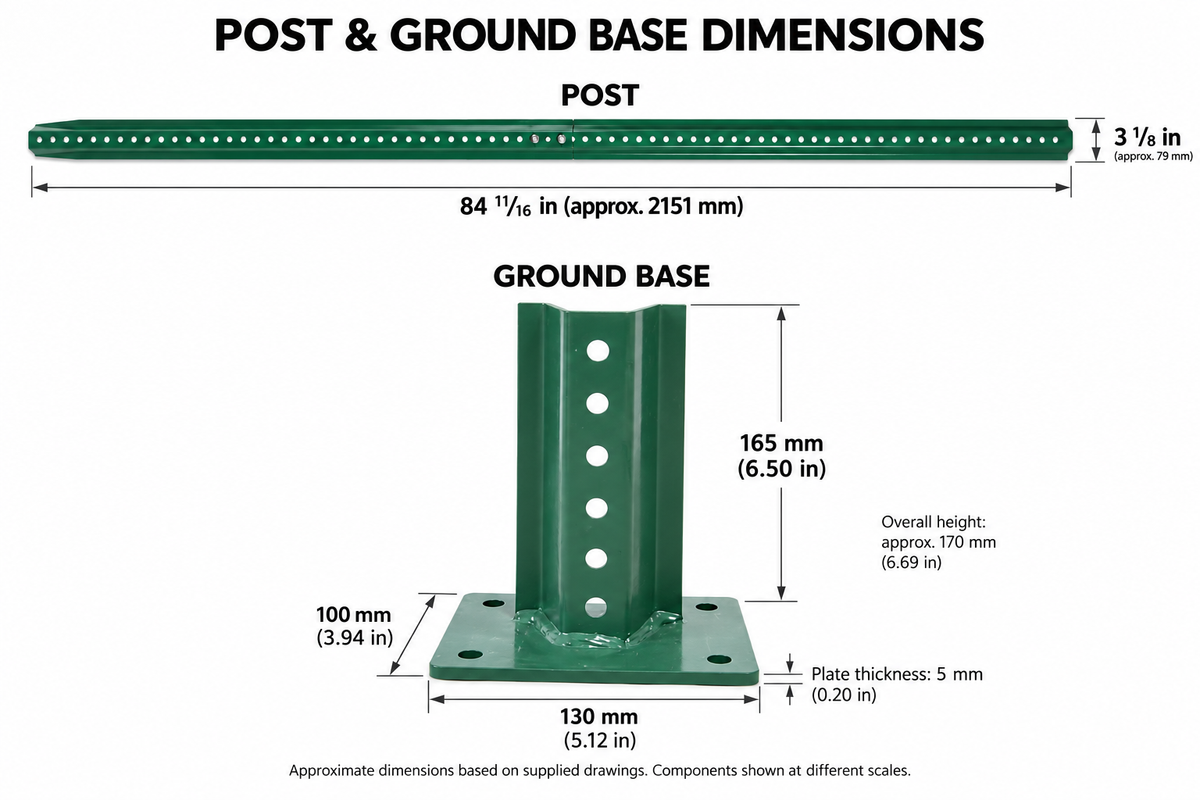

Dimensions
Approximate dimensions below follow the supplied product drawings and the dimension image in the gallery. Post length is the full assembled length, not the height above ground after installation.
| Measurement | Inches | Metric |
|---|---|---|
| Assembled post length | 84 11/16 in | Approx. 2151 mm |
| Post outer width | 3 1/8 in | Approx. 79 mm |
| Ground base plate | 5.12 × 3.94 in | 130 × 100 mm |
| Base upright height, excluding plate | 6.50 in | 165 mm |
| Base plate thickness | 0.20 in | 5 mm |
| Ground base overall height | Approx. 6.69 in | Approx. 170 mm |
Installation and Compatibility
For suitable soil or gravel, choose the Post option and use an installation method appropriate to the site. For a surface-mounted installation, select the Ground Base separately and use anchors suited to the mounting surface. Check the post-to-base connection, sign hole spacing and required hardware before installation.

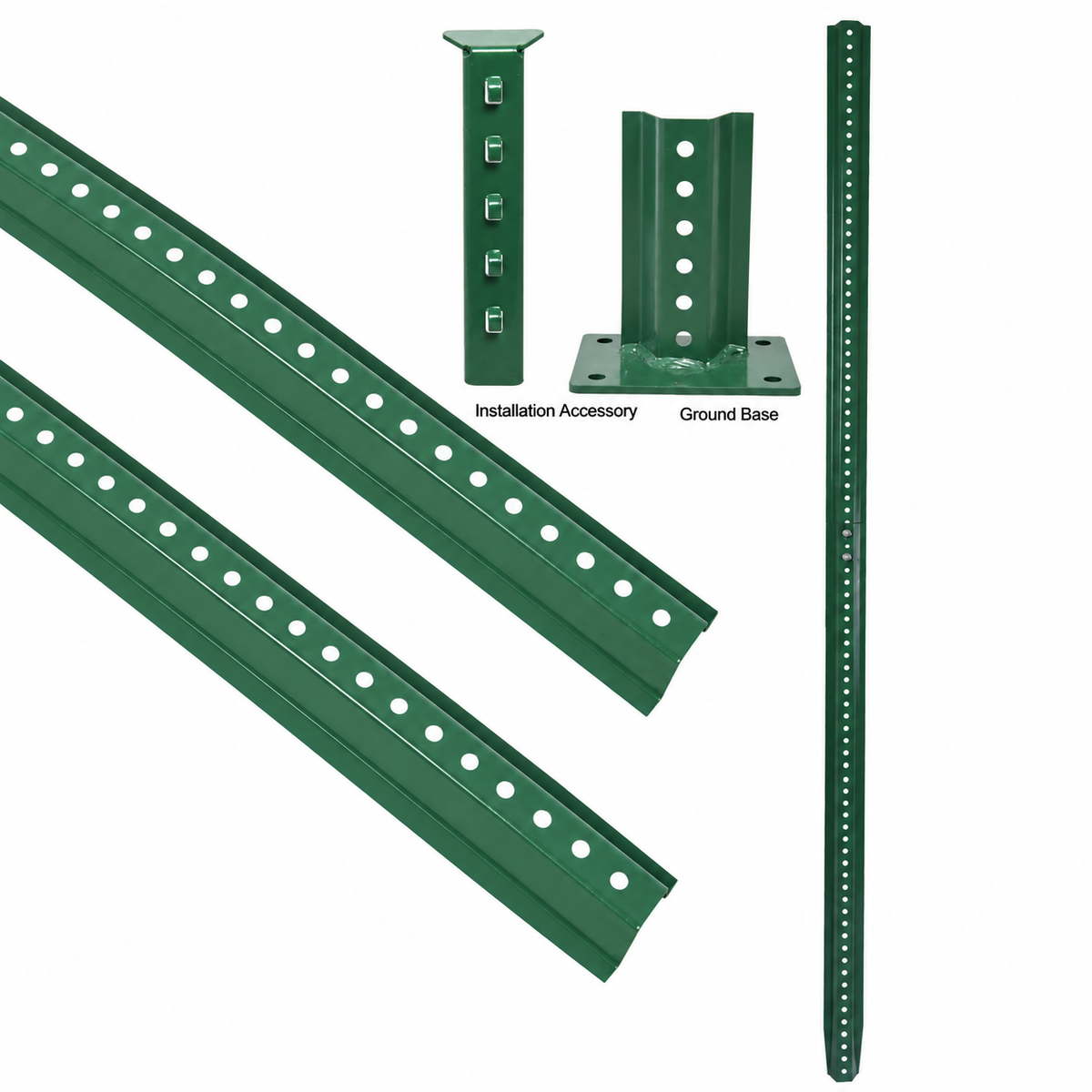

The gallery also shows an installation accessory. Confirm the accessory and fasteners supplied with your selected pack before ordering if your project requires particular hardware.
Common Applications
Use for parking signs, driveway directions, property notices and facility wayfinding. Choose a mounting location and sign size appropriate to your installation.
Frequently Asked Questions
Does the Post option include a Ground Base?
No. Post and Ground Base are separate options. Add each required part to your cart.
What does 2PACK mean?
It means two of the selected part: two posts or two ground bases.
How tall is the assembled post?
The supplied drawing shows an overall assembled length of approximately 84 11/16 inches (2151 mm). Installed height depends on the mounting method and insertion depth.
Will my sign fit?
Compare your sign's mounting holes with the post before ordering. The base plate measures 130 × 100 mm and has four mounting holes.
