What a Detectable Warning Surface Actually Does

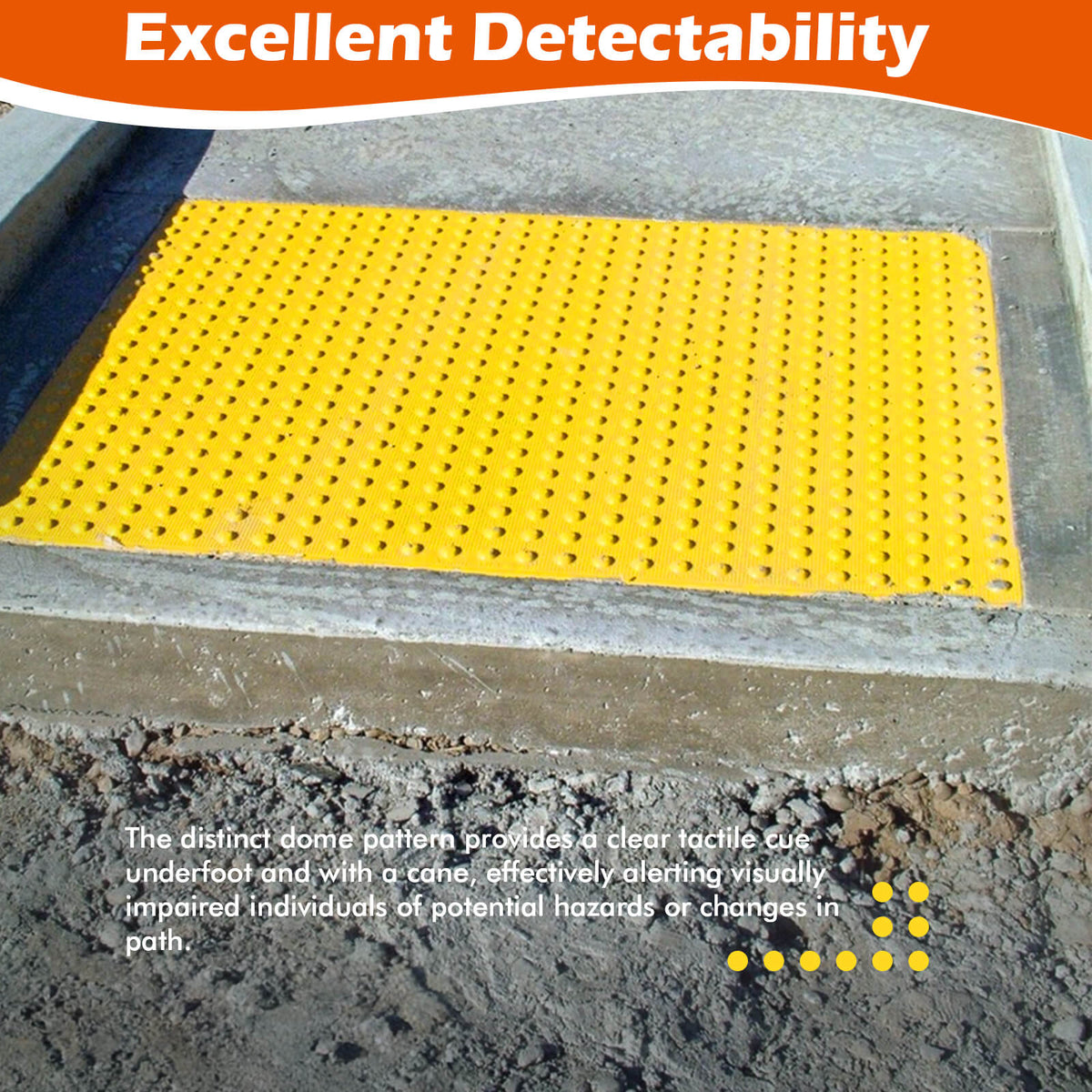

Where a sidewalk meets a street, the curb itself is a cue: it tells every pedestrian where the pedestrian route ends and the vehicular route begins. A curb ramp or blended transition removes that curb on purpose, so people using wheelchairs, strollers, and carts can pass — but it also removes the edge that pedestrians who are blind or have low vision rely on. A detectable warning surface restores that cue underfoot. It is a distinct surface of truncated domes, detectable by cane and underfoot, that marks the boundary between the pedestrian route and the vehicular route in place of the missing curb.
In the United States, the technical reference for these surfaces in the public right-of-way is the U.S. Access Board's Public Right-of-Way Accessibility Guidelines (PROWAG). PROWAG scoping provision R205 covers where detectable warning surfaces are provided, and technical provision R305 covers how they are built. This guide walks through what those provisions say, where surface-mount warning pads are typically used, and how to choose and install them — with the standing reminder that the project specification and the authority having jurisdiction govern any given job.
Where Detectable Warning Surfaces Are Called For
Under PROWAG R205, detectable warning surfaces are provided at locations including:
- Curb ramps and blended transitions at pedestrian street crossings — the most common application, at the bottom of the ramp where the pedestrian route meets the street.
- Cut-through pedestrian refuge islands — where a crossing passes through a refuge island at street level before the next vehicular lane.
- Pedestrian at-grade rail crossings not located within a street or highway.
- Boarding platforms at transit stops for buses and rail vehicles where platform edges are not protected by screens or guards.
- Boarding and alighting areas at sidewalk- or street-level rail transit stops on the side facing the rail vehicles, where that side is not protected.
- Pedestrian circulation paths at driveways controlled with yield or stop control devices or traffic signals.
Private sites borrow the same logic even where PROWAG does not directly apply: parking lot crossings, loading areas, and drive aisles on campuses, warehouses, hospitals, and retail properties are all places where a flush transition removes the curb cue and a warning surface puts it back. Local codes and project specifications decide exactly what is required on a private site, so confirm them before ordering.
The Dome Geometry Is the Specification
A detectable warning surface is not any textured mat. PROWAG R305 defines a specific geometry, and buyers comparing pads should measure products against it:
- Pattern — truncated domes aligned in a square or radial grid pattern (R305.1).
- Dome size — base diameter of 0.9 inch minimum to 1.4 inches maximum, top diameter of 50 to 65 percent of the base diameter, and a height of 0.2 inch (R305.1.1).
- Dome spacing — center-to-center spacing of 1.6 inches minimum to 2.4 inches maximum, with a base-to-base spacing of 0.65 inch minimum between the most adjacent domes (R305.1.2).
- Visual contrast — the surface must contrast visually with the adjacent walking surfaces, either light-on-dark or dark-on-light (R305.1.3). Contrast helps pedestrians with low vision as well as cane and underfoot detection.
- Coverage — the surface extends at least 2.0 feet in the direction of pedestrian travel and, at curb ramps and blended transitions, the full width of the ramp run excluding flared sides (R305.1.4).
That coverage rule drives pad sizing in practice: a pad must be deep enough to give a full 2-foot warning field in the direction of travel and wide enough to cover the ramp width, which is why warning pads are sold in modular sizes that tile across a ramp.
Surface-Mount Pads vs Cast-in-Place
Warning surfaces come in two broad installation families:
- Cast-in-place (wet set) tiles are set into fresh concrete on new construction. They suit projects where the ramp itself is being poured.
- Surface-mount pads are anchored onto cured concrete or other sound existing surfaces with mechanical fasteners and sealant. They are the practical retrofit choice: an existing ramp that lacks a warning surface, or has a worn one, can be brought up to the project specification without demolishing and re-pouring the ramp.
For maintenance teams and property managers, surface-mount pads also simplify replacement — a damaged pad can be unbolted and swapped, rather than cutting out concrete. Either way, the substrate must be sound, clean, and dry enough for the fastening method, and the finished surface must sit flush enough that it does not itself become a trip edge.
How to Choose the Right Warning Pad
- Measure the ramp first. Record the ramp run width and confirm you can fit a warning field at least 2 feet deep in the direction of travel. Tile modular pads to cover the full width, excluding flared sides.
- Check the dome geometry. Ask for base diameter, top diameter, height, and spacing, and compare them with the R305 ranges above and with your project specification.
- Plan the contrast. Choose a pad color that contrasts with the surrounding pavement — light-on-dark or dark-on-light — rather than blending into it.
- Confirm the fastening system. Look for pre-formed fastener locations and included anchors or bolts, which speed up layout and reduce installation errors; sealant is typically supplied separately.
- Think about wear conditions. Snowplows, street sweepers, heavy cart traffic, and UV exposure all punish warning surfaces. Ask how the pad material handles slip resistance and impact compared with alternatives, and plan periodic inspection of domes and fasteners.
- Verify against the governing documents. State DOT standards, municipal details, and project plans can be stricter than the general guidelines. Treat the guidelines as the floor, and the project specification as the deciding document.
Who Buys Detectable Warning Pads
- Municipal public works and street departments retrofitting curb ramps across a sidewalk network.
- Site and paving contractors building or repairing parking lots, campuses, and commercial frontages.
- Property and facility managers for retail centers, hospitals, warehouses, and office parks with flush pedestrian crossings.
- Transit and parking operators maintaining boarding areas and garage pedestrian routes.
OranLite ADA Warning Pads
OranLite's ADA Warning Pad (2 pieces, with install bolts) is a surface-mount detectable warning tile for retrofit and new-work applications. Per the product listing, it features truncated domes at 2-inch center-to-center in-line spacing, pre-formed fastener locations with anchors included (sealant not included), and UV protection for outdoor service. It is offered in 2 x 2 ft and 3 x 2 ft sizes, so pads can be combined to cover the full width of a ramp run with the 2-foot depth the guidelines call for in the direction of travel.
Before specifying any warning pad — ours included — compare the dome dimensions and layout against PROWAG R305 and your project requirements, and confirm acceptance with the authority having jurisdiction for the site.
Planning a curb ramp retrofit or a parking lot accessibility upgrade? Review the OranLite ADA Warning Pad sizes and details and match the layout to your ramp measurements.
